CM-25



Ground Driven Manure Spreader

The CM-25 is a ground-driven manure spreader for your ATV, lawn & garden tractor, or compact tractor. You do not need any PTO to operate this spreader as the wheels provide the power to the chain and beaters.

This is the smallest ground driven manure spreader made by Conestoga. It features a heavy-duty, welded construction, epoxy paint, and vinyl floorboards.

Ideal for 1-5 Horses

manure spreader for atv ground driven manure spreader copy

Tow with ATV or Lawn & Garden Tractor

ground driven manure spreader being pulled by atv outside horse barn
ground driven manure spreader sitting along white fence
ground driven manure spreader highlight pulverizer bar

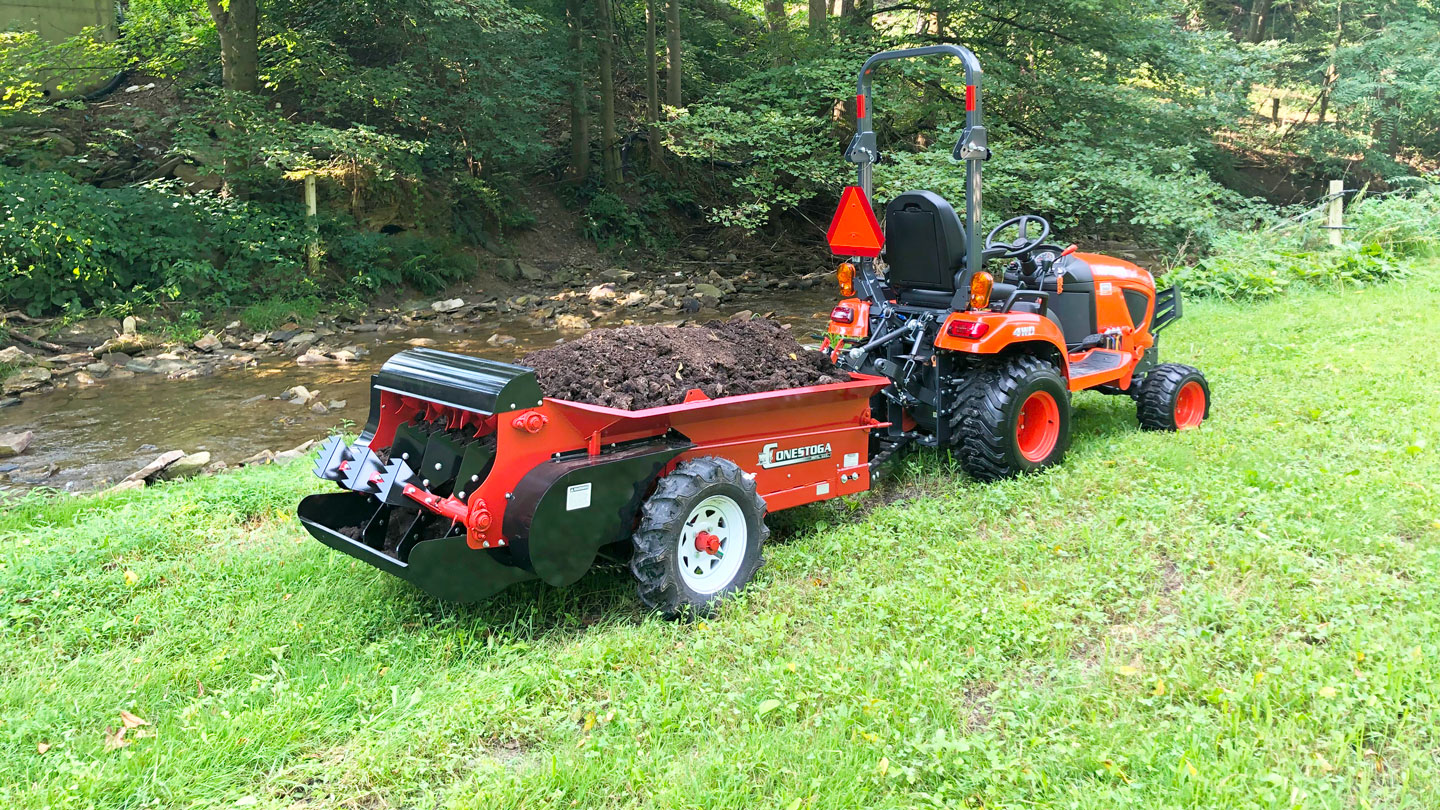

ground driven manure spreader pulled by kubota compact tractor

CM-25 Ground Driven Manure Spreader

The smaller, CM-25, ground driven manure spreader from Conestoga is designed for daily use and smaller loads. We designed this manure spreader to last and built it from choice materials to make sure it would. This spreader’s built features stainless steel for a few of the moving components like the T-Rod Chain, rods, and apron chain.

The floorboards of this ground driven manure spreader are poly-vinyl guaranteed to not rot. The beater features a 12-comb rooster paddle with individual, replacable paddles. It is all-wheel drive to ensure that you continue spreading even when turning.  This ground driven manure spreader was built with you in mind.

TESTIMONIALS

I’ve owned several of the “big name” manure spreaders, but the Conestoga spreader is by far the best. It has a much better design, more durable parts, and a very reasonable price. My other spreaders couldn’t handle spreading manure mixed with hay, but the Conestoga spreads it quickly and easily.

Linda S. West Virginia

I have been running my own business for 30 years, and I have been very pleased with both the manure spreader that I purchased, as well as the very professional and reasonable servicing Conestoga does for me once or twice a year. These are honest good people that do a great job with their business.

Aggie O. , Pennsylvania

Conestoga is by far the best spreader out there. After 2 years of continuous use, it works perfectly. I would match the Conestoga against any out there.

Wendy C. , North Carolina

CM-25 SPECIFICATIONS

conestoga manure spreader cm 25 ground drive manure spreader specifications drawing
  • Capacity: 26 cubic feet
  • Overall Length: 120 inches
  • Overall Width: 47 inches
  • Loading Height: 30 inches
  • Flared Width: 35 inches
  • Box Width: 28 inches
  • Box Length: 78 inches
  • Box Construction: Fully Welded, 12 Gauge COR-TEN Steel
  • Floor Construction: High Density Poly-Vinyl (Tongue & Groove)
  • Beater Paddles: 12 Rooster Comb (Replaceable with 60 cutting teeth)
  • Beater Diameter: 18 inches
  • Drive: 2 Wheel Drive
  • Apron Chain: 3/8″ Stainless Steel T-Rod
  • Apron Drive: 4-Speed Ratchet Drive
  • Spindle: 1 3/8″
  • Tires: 6-12 Traction
  • Shipping Weight: 565 pounds
  • Wheels: 12×6-4 Bolt

STANDARD FEATURES

ground driven manure spreader highlight pulverizer bar

12 Rooster Comb Paddles

Twelve Bolted paddles with a large diameter are made of 3/16″ quality steel for an excellent spreading pattern. The bolt-on style allows for easy replacement.

Polyvinyl Flooring

The floor of the ground drive manure spreader is built with Polyvinyl flooring with a lifetime guarantee. This flooring allows for better flow and an easy cleanup. They will not rust or rot.

All Wheel Drive

Our uniquely designed ratchet clutch drive system makes spreading easy. Whether you are spreading straw bedding, shavings, or even a load mixed with hay- the CM-25 ground driven manure spreader will unload smoothly with NO WHEEL DRAG OR SLIPPING.

Adjustable Web-Drive

Choose from four spreading speeds with an adjustable web speed lever. The easy-to-use lever allows you to adjust spreading thickness from a light dusting to a heavy coating.

conestoga manure spreader cm 25 ground drive manure spreader standard features
ground driven manure spreader sitting along white fence

Adjustable Main Apron Chain

The main apron chain may need adjusting occasionally. Our 25 cu. ft. capacity ground driven manure spreader makes that an easy task. Simply loosen two side bolts and turn the front nut to adjust the chain.

Box Construction

The box of our ground driven manure spreader is built from long-lasting 12-gauge COR-TEN steel for extra corrosion resistance.

OPTIONAL FEATURES

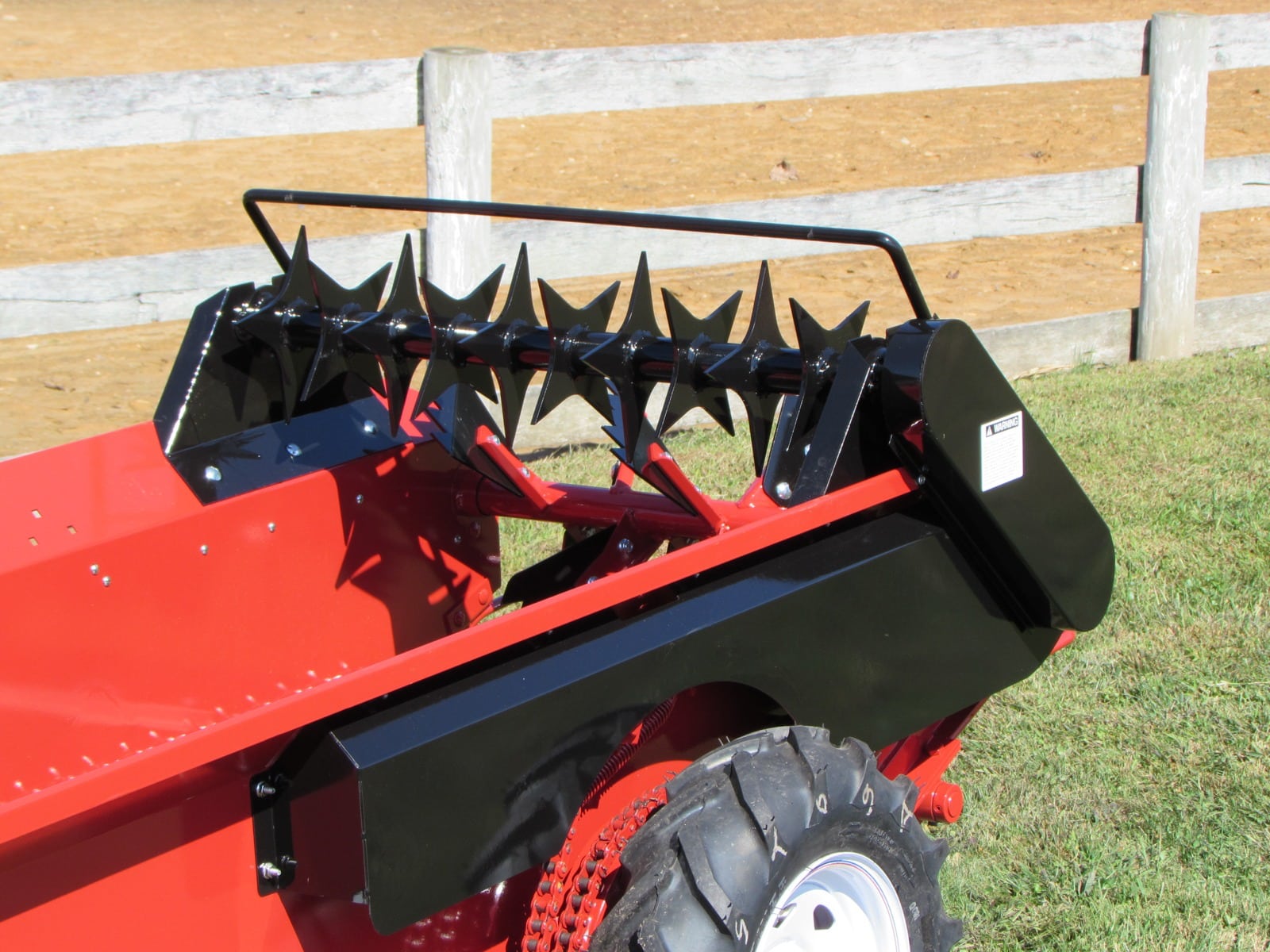

conestoga manure spreader cm 25 ground drive manure spreader optional features top beater
Top Beater

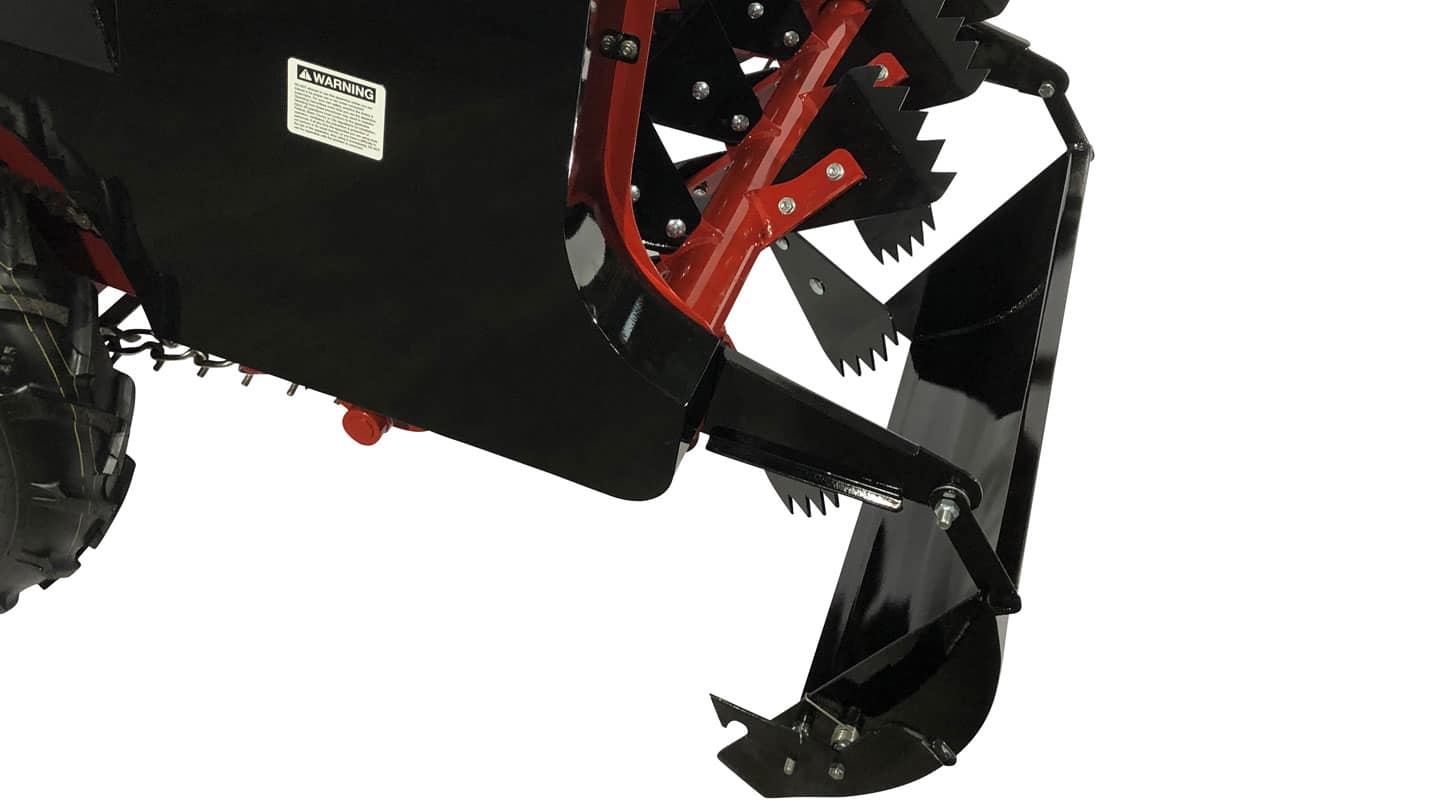

conestoga manure spreader cm 25 ground drive manure spreader optional features fine spread pan
Fine Spread Pan

AVAILABLE COLORS
