CM-25



Ground Driven Manure Spreader

The CM-50 is a ground-drive manure spreader for your ATV, UTV, or compact tractor. This ground-drive manure spreader doesn’t require any PTO to operate since the wheels provide the power to the apron chain and spreader-beater.

This is the larger model ground drive manure spreader made by Conestoga. It features heavy-duty, welded construction, epoxy paint, and vinyl floorboards. The CM-50 features a 50 cu. ft. spreader box.

Ideal for 4-6 Horses

icon conestoga manure spreader cm 25 ground drive manure spreader optional features jack

Tow with ATV, UTV, or Compact Tractor

CM-50 Manure Spreader

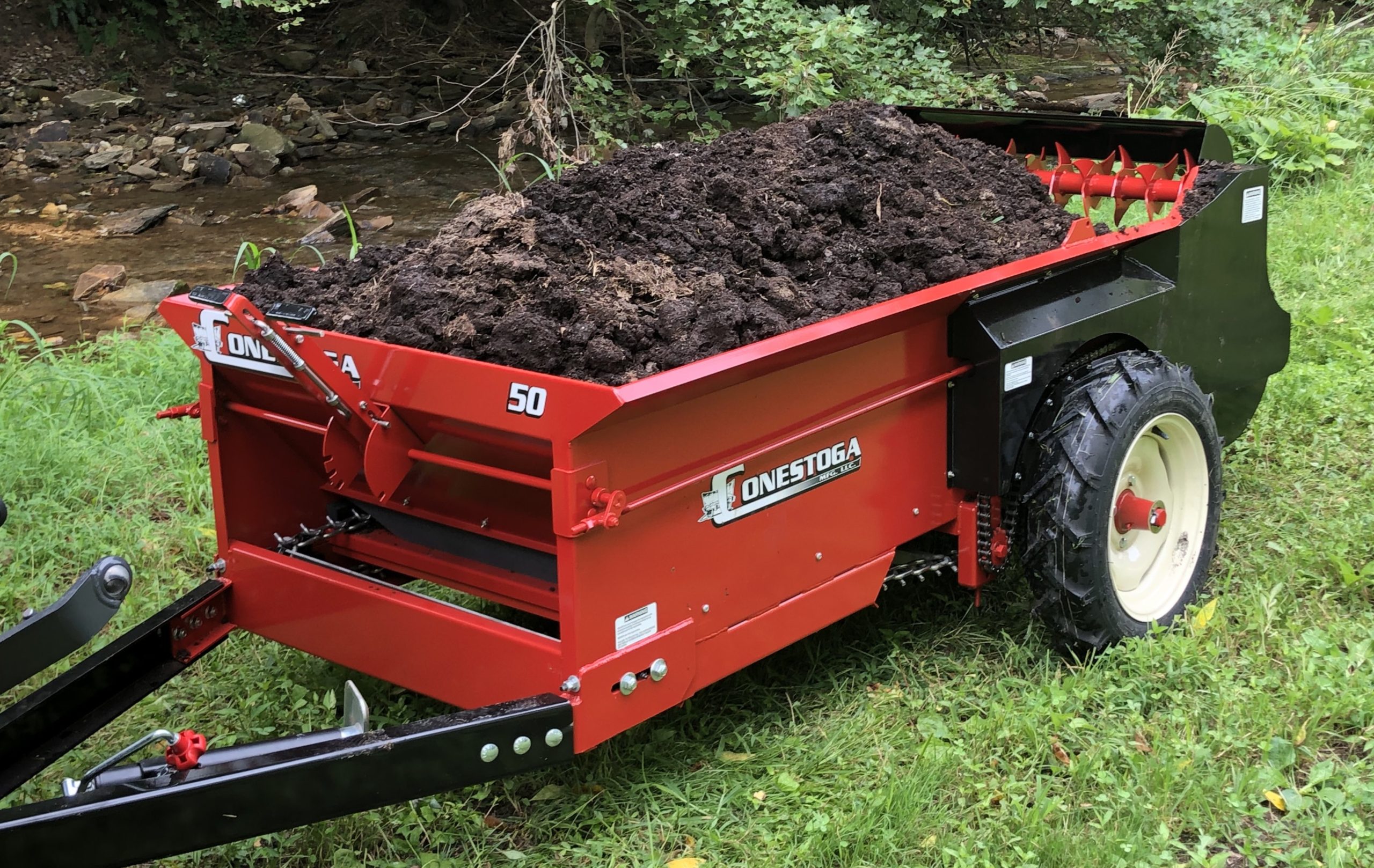

CM-50 Ground Drive Manure Spreader

The larger, CM-50, ground drive manure spreader from Conestoga has been designed for daily use. This manure spreader offers twice the capacity of the little brother, CM-25. We designed this manure spreader to last and built it from choice materials to make sure it would. This spreader’s build features stainless steel for a few of the moving components like the T-Rod Chain, rods, and apron chain.

The floorboards of this ground drive manure spreader are poly-vinyl guaranteed to not rot. The beater features a 12-comb rooster paddle with indvidual, replaceable paddles. It is all-wheel drive drive to ensure that you continue spreading even when turning. This ground drive manure spreader is built with you in mind.

STANDARD FEATURES

  • 12 Rooster Comb Paddles: 12 bolted paddles with NEW larger diameter are made of 3/16” quality steel for an excellent spreading pattern. Replacement paddles available.
  • Polyvinyl Floors: Guaranteed for a lifetime, smooth for a better flow and an easy cleanup! Will not rust or rot!
  • T-Rod & Stainless Steel Apron Chain: The highest quality apron chain on the market, the T-Rod provides better durability and performance.
  • Adjustment for Main Apron: Adjusting the main apron chain is easy. Simply loosen two side bolts and turn the front nut to your preference! Easy access for sprocket lubrication.
  • Slide-Away Jacks: Our easy operating jacks are specially designed for Conestoga spreaders.
  • All-Wheel Drive: Our special ratchet clutch drive system very easily unloads your spreader. Whether you are using straw bedding, shavings, or even mixed with hay, the Conestoga unloads smoothly, and there is no wheel drag or slipping!
  • Adjustable Web Drive: 4-speed adjustable web speed lever now with NEW easy-grip rubber handles allow you to adjust spreading thickness from a light dusting to a heavy coating.
  • Box Construction: Long-lasting COR-TEN 12-gauge steel for extraordinary corrosion resistance.

OPTIONS

  • Fine Spread Pan
  • Top Beater
  • End Gate
  • Jack
  • Adjustable Hitch
  • GatorHyde Body Lining
  • Wheel Jack

AVAILABLE COLORS

WHY CONESTOGA?

Conestoga Manufacturing, LLC is a leading manufacturer of compact manure spreaders and drop spreaders. Based in Kirkwood, PA, the company was founded in 2001 and has steadily grown. Conestoga manufactures a wide range of quality manure spreaders designed to meet the unique needs of small farmers and horse owners. The company also manufactures easy-to-use, quality-built manure spreader options, as well as a full-line of liquid manure spreaders (call for information).

Being based in the heart of Lancaster County, PA, it is no surprise that Conestoga’s small manure spreaders are known for their durability, ease of use, and overall product quality. Conestoga’s manufacturing team works hard to ensure the integrity and quality of each spreader to ensure its longevity. That is why they offer a 3-year overall warranty (excluding the E-25) and lifetime warranties on apron chains and floors.

Conestoga compact manure spreaders are made in the U.S.A. with an eye on continuous product improvement. Conestoga continually evaluates ways in which to improve the product, often based on customer feedback. The company also strives to make as much of the product components as possible here in the U.S. Supporting and giving back to the community is as important to Conestoga’s management team, as is delivering a dependable product to the customer.

Conestoga is one of the few compact manure spreader manufacturers to offer custom made manure spreaders. They welcome inquiries from customers who need a custom-built spreader or accessory.

key features & benefits

Poly Flooring

Poly Flooring

Conestoga Manure Spreaders flooring is made  of recycled plastic, similar to many floor boards used in decks / patios. Our poly flooring greatly increases the life of the spreader and also helps with smoother unloading and more resistance to freezing.

New Lever Design

New Lever Design

Our levers are designed with the user in mind. The ground drive unit comes standard with 2 levers. When facing the unit the right lever operates the beater, with a smooth lifting action it will lift the chain off of the main drive sprocket. The left lever operates the apron chain with 3 different speeds for you to choose from. This design allows you to control the amount of manure you wish to apply.

Replaceable Rooster Comb Paddles

Replaceable Rooster Comb Paddles

All Conestoga Spreaders come with 12 replaceable beater paddles. Each paddle comes with 5 cutting teeth for a total of 60 cutting edges on the main beater, not counting the pulverizing bar. The top pulverizing bar comes with 36 cutting teeth which are setup similar to a rototiller. This system is sure to shred and pulverize material before spreading.

Welded COR-TEN Steel

Welded COR-TEN Steel

Spreader Models C-25 through C-80 come standard with 12 Gauge COR-TEN steel. Spreader Models 125 & 175 are manufactured using 10 Gauge COR-TEN steel. COR-TEN steel is a highly anti-corrosive steel and has up to 4 times the corrosion resistance of traditional steel. COR-TEN is used in mainly high coressive applications such as bridges, power plants, and towers. Our welded boxes are sure to give you years of maintenance free use. All our spreaders come with a 10 Year frame and box warranty

Paint Process

Paint Process

Using our high quality COR-TEN steel it is  phosphatized and washed with a 3000 PSI Hot Pressure washer. The first coating is a two part epoxy primer and final coating with a two-part premium paint designed for farm equipment.

Conestoga Logo

About Us

Conestoga Manufacturing is located in Kirkwood, Pennsylvania. Conestoga has been manufacturing quality farm equipment since 2001. Conestoga Also manufactures a full line of liquid manure handling equipment, drop spreaders, and compost spreading equipment. In 2019 we also purchased Earth & Turf Products, which is a full line of compost spreading equipment.

cm-50 specifications

CAPACITY:

OVERALL LENGTH:

OVERALL WIDTH:

LOADING HEIGHT:

FLARED WIDTH:

38 cu. ft

141″

54″

34″

43″

BOX WIDTH:

BOX LENGTH:

BOX CONSTRUCTION:

FLOOR CONSTRUCTION:

BEATER PADDLES:

35″

90″

12 GA COR-TEN

HIGH DENSITY POLYVINYL 3/4″ T&G

12 REPLACEABLE

BEATER DIAMETER:

DRIVE:

APRON CHAIN:

APRON DRIVE:

SPINDLE:

19″

2 WHEEL GROUND DRIVE

5/16″ STAINLESS T-ROD

4 SPEED RATCHET DRIVE

1-3/8″

TIRES:

HORSE POWER REQUIRED:

WEIGHT (WITH TIRES):

5-15

N/A

825 LBS

CM-50

Horse Icon

Ideal for 4 – 6 Horses
